Ion Reservoir (Black)


Ion Reservoir (Black)

0.00

The XSPC Ion is a compact reservoir for PC water cooling.

The Ion's versatile bracket can easily be mounted to any 120/140mm fan, fan mount, or radiator and can rotate to four different positions. This allows the reservoir to be mounted in the majority of PC cases, without the need for any modifications.

On each side of the Ion is a G1/4” inlet port and outlet port, making it easier to neatly route the tubing in your build. On the top of the Ion is a large M20 fill cap, for easy filling and toping up of the reservoir.

The Ion's internal reservoir is encased in a high quality, extruded and CNC cut aluminium shell. The internal acrylic reservoir is LED backlit to lights up the coolant and viewing window. The Ion is supplied with a white LED, but it's easily replaceable with our blue, red, green, yellow, orange and UV LEDs. This makes it simple to perfectly match the lighting colour of your PC build.

Each Ion reservoir is carefully hand assembled and pressure tested before sale, to ensure reliability and quality.


Specification:

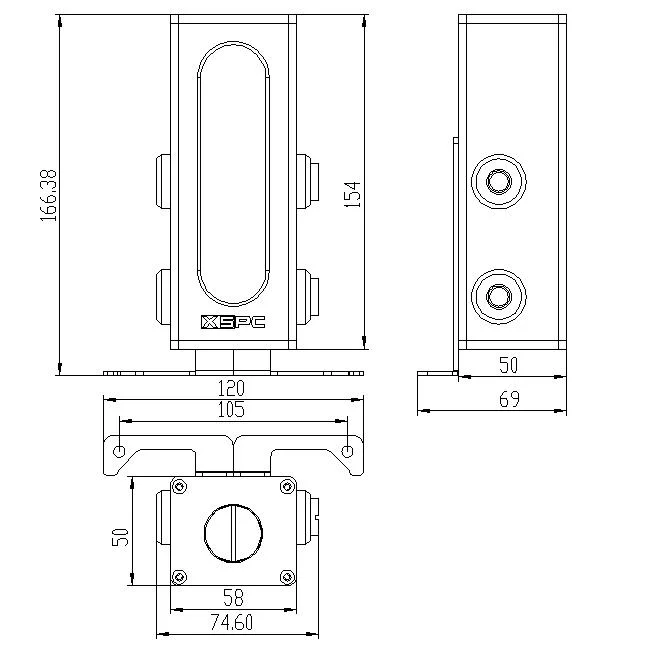

Dimensions: 58 x 50 x 154mm (excluding accessories)
Coolant Capacity: 160ml
Shell Material: Aluminium
Reservoir Material: Acrylic
Maximum Temperature: 60C
Inlets: 2 x G1/4”
Outlet: 2 x G1/4”
Fill Cap: 1 x M20


Includes 2x G1/4" Plug
