The D5 Photon Reservoir combines the ultimate tube reservoir with the best pump available for PC water cooling (pump sold separately).

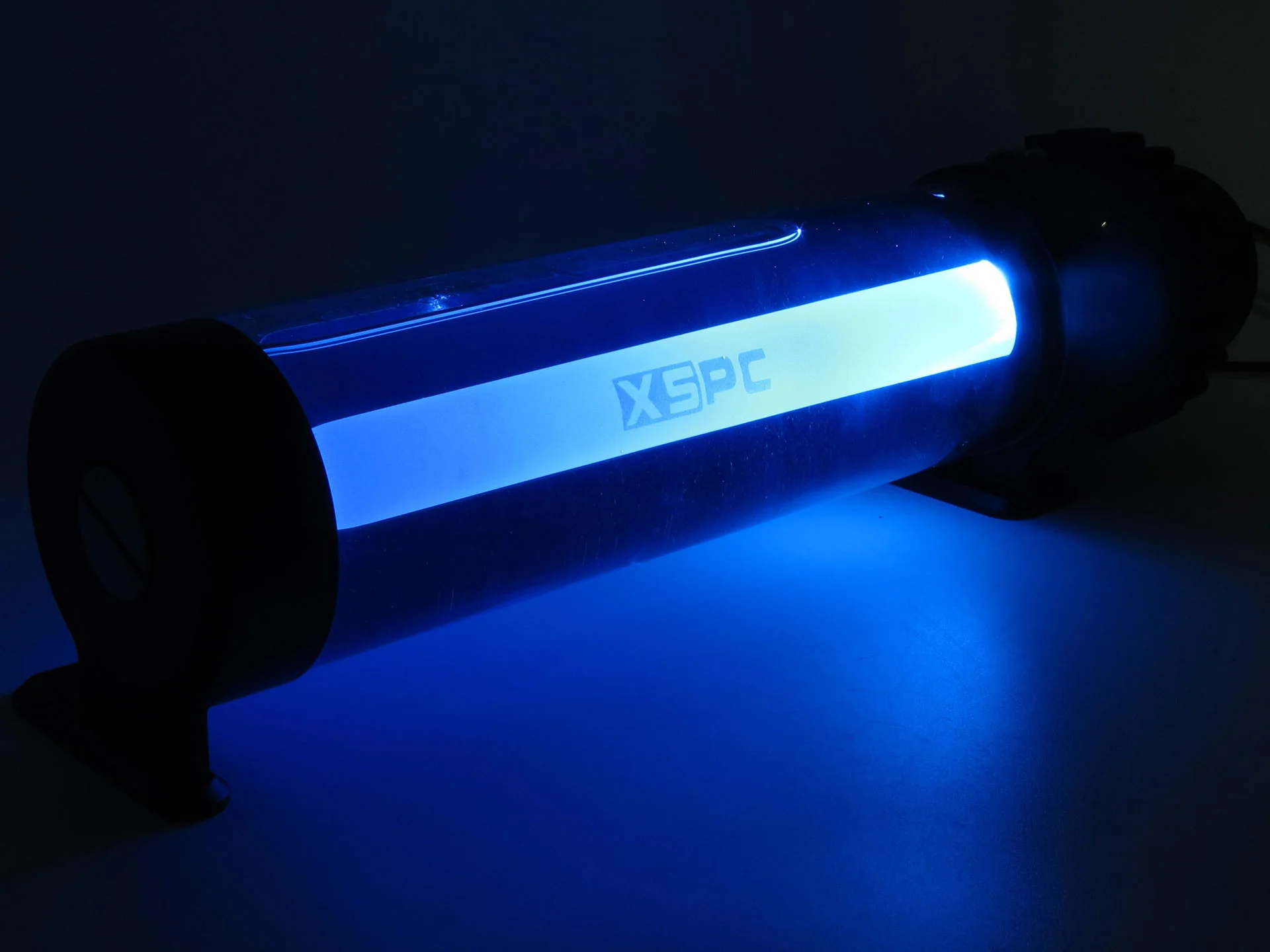

The tube is made from a quality toughened glass, which is both crystal clear and highly resistant to staining. In the center of the tube is an acrylic lighting pole that connects to a 5mm LED on the base of the reservoir. The LED is easily replaceable so you can match the lighting colour to your build.

Unlike other tube reservoirs, which use cheap plastic brackets, the XSPC Photon has high quality CNC cut aluminium bracket. The bracket connects to both ends of the reservoir which give a solid hold without blocking the view of the tube.

Photon reservoirs can be used either horizontally or vertically. If using the Photon horizontally, make sure to keep the reservoir topped up to the top, or air can get sucked into the loop.

Each reservoir is hand assembled and pressure tested before sale to ensure reliability.

V2 Photon reservoirs include a new bracket which attaches directly to 120mm and 140mm radiators. It also has an improved fillport with lower restriction, to make filling the reservoir easier.

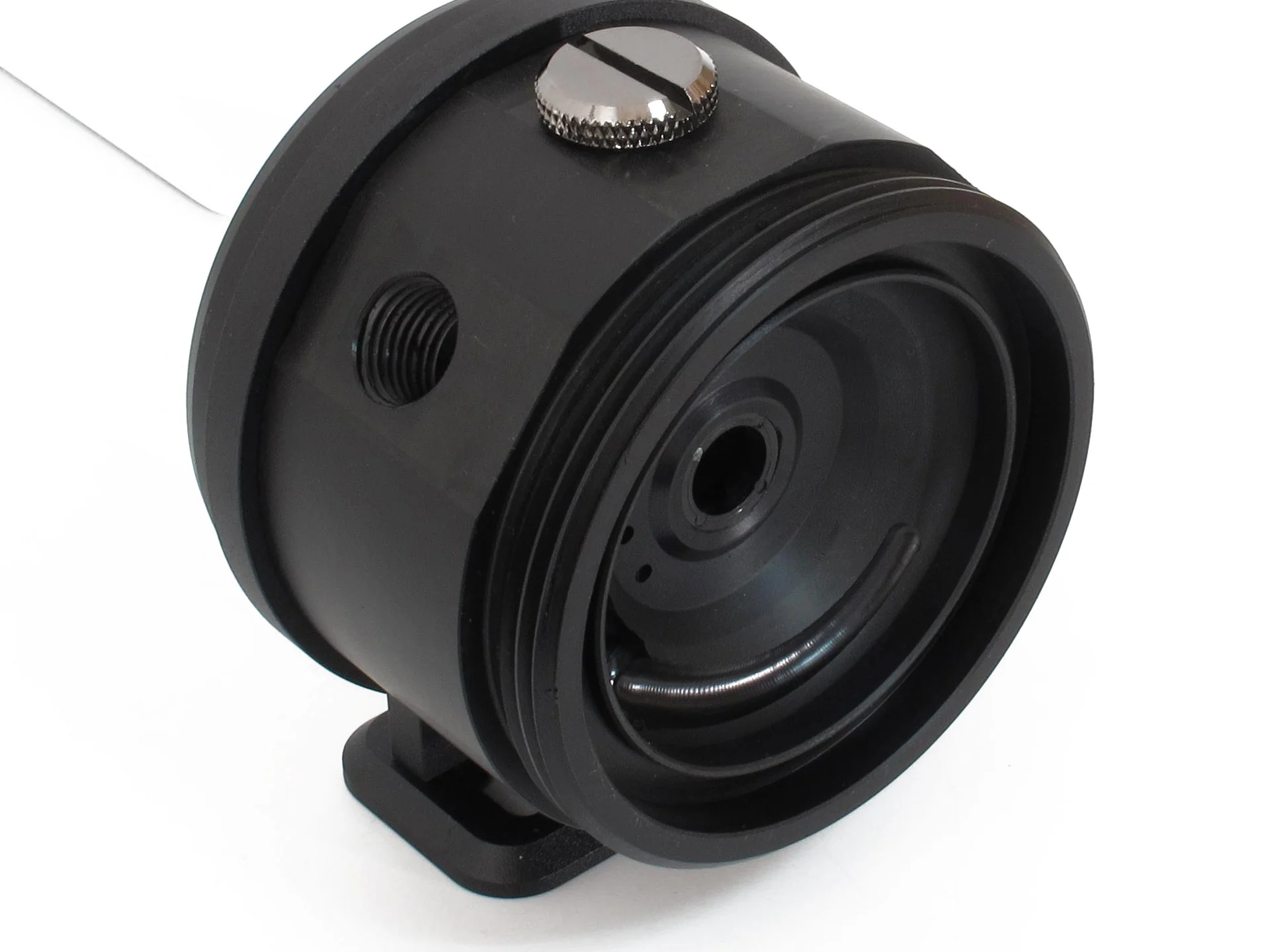

• Supports one D5 Pump (not included)
• Tube Material: Glass
• Cap Material: Acetal
• Bracket Material: Aluminium

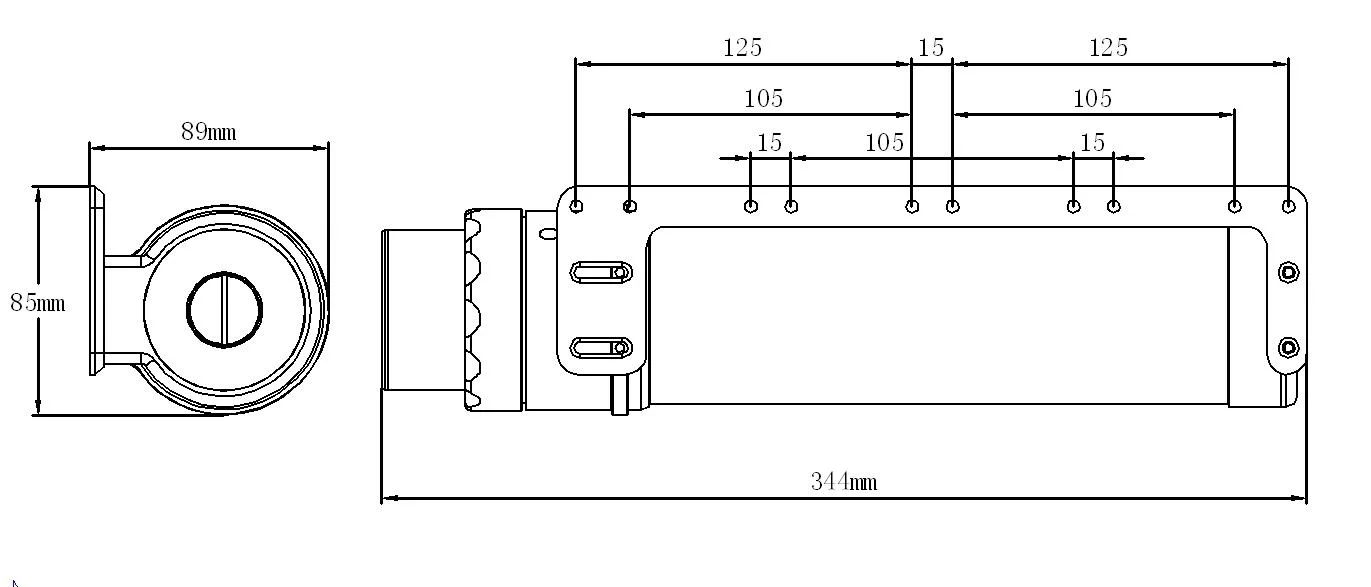

• Dimensions: 344 x 85 x 89mm (with pump fitted)
• Capacity: 690ml

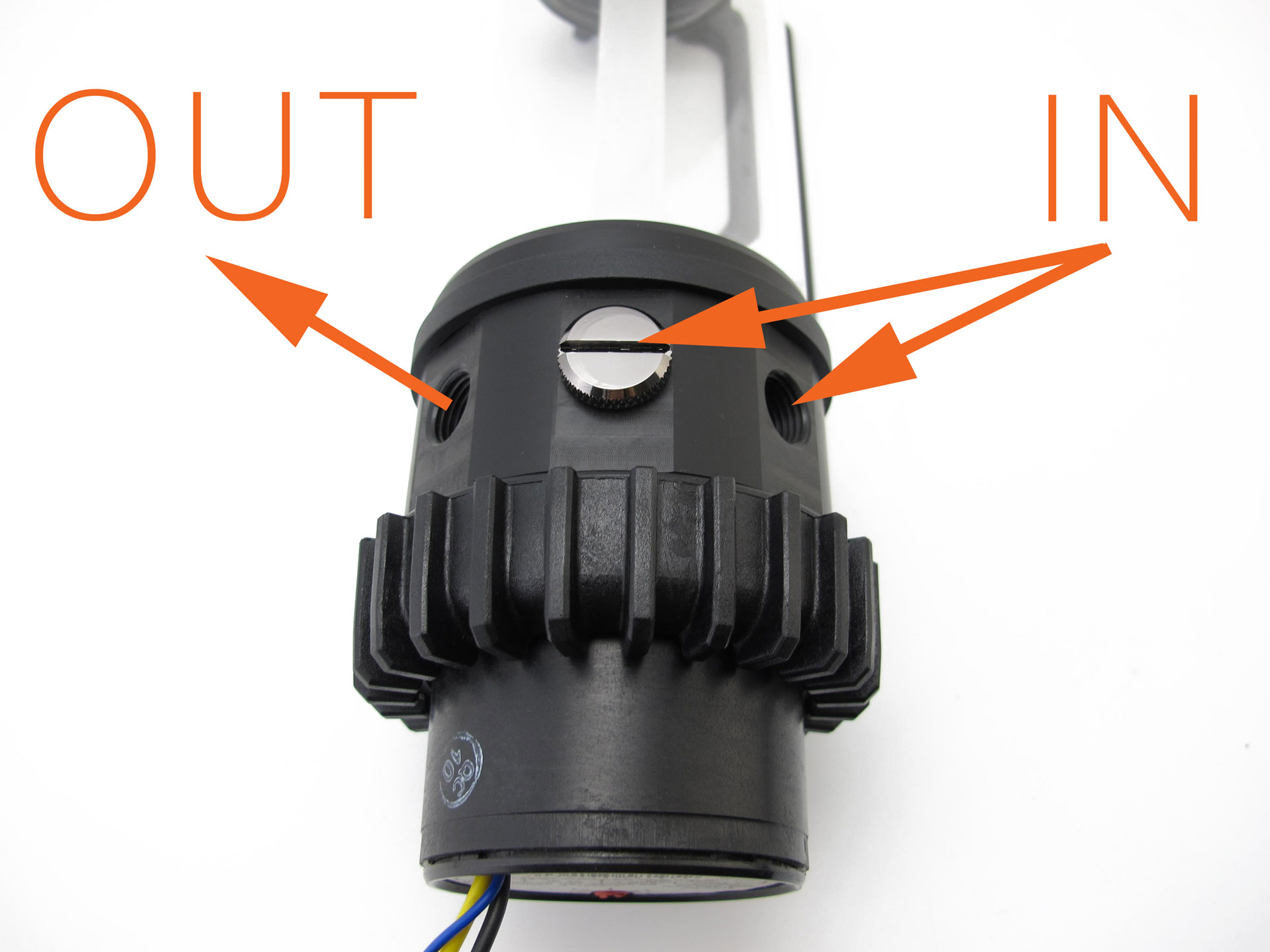

• 3x G1/4" Ports
• 1x 5mm LED Hole
• Individually Pressure Tested


Supplied with 5mm white LED, G1/4" plug and screw set.

Supplied without D5 pump, o-ring and screw ring (D5 fixing bracket)
