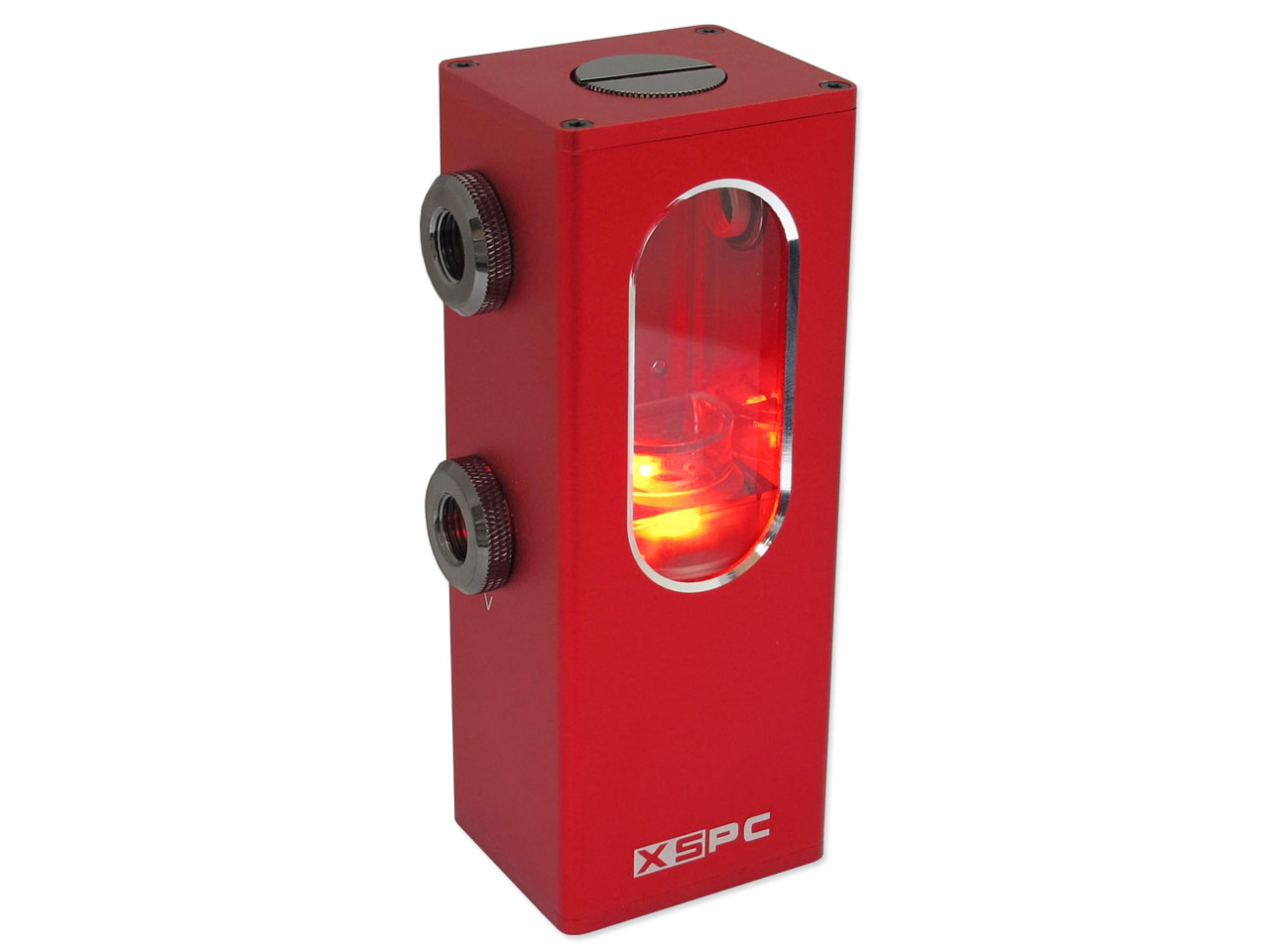

The XSPC Ion is a compact, powerful and reliable pump/reservoir for PC water cooling.

The Ion's versatile bracket can easily be mounted to any 120/140mm fan, fan mount, or radiator and can rotate to four different positions. This allows the pump to be mounted in the majority of PC cases, without the need for any modifications.

On each side of the Ion is a G1/4” inlet port, making it easier to neatly route the tubing in your build. On the top of the Ion is a large M20 fill cap, for easy filling and toping up of the reservoir.

The Ion's internal components are encased in a high quality, extruded and CNC cut aluminium shell. Inside the shell is a reservoir and compact DC pump with a head delivery of 2 meters. This makes it powerful enough for multi waterblock and multi radiator systems.

The internal acrylic reservoir is LED backlit to lights up the coolant and viewing window. The Ion is supplied with a white LED, but it's easily replaceable with our blue, red, green, yellow, orange and UV LEDs. This makes it simple to perfectly match the lighting colour of your PC build.

Each Ion pump/reservoir is carefully hand assembled and pressure tested before sale, to ensure reliability and quality.

Specification:

• Dimensions: 58 x 50 x 154mm (excluding accessories)
• Maximum Flow: 420 lph (12V)
• Maximum Head Delivery: 2m
• Power Connector: SATA Power
• Voltage: 12V (Startup 9V)
• Power Consumption: 6W
• Noise Level: 35dBA
• Coolant Capacity: 84ml
• Shell Material: Aluminium
• Reservoir Material: Acrylic
• Maximum Temperature: 60C
• Inlets: 2 x G1/4”
• Outlet: 1 x G1/4”
• Fill Cap: 1 x M20
