SKU: 5060175589705

XSPC RGB Series fans offer RGB lighting, in a high static pressure fan with PWM control.

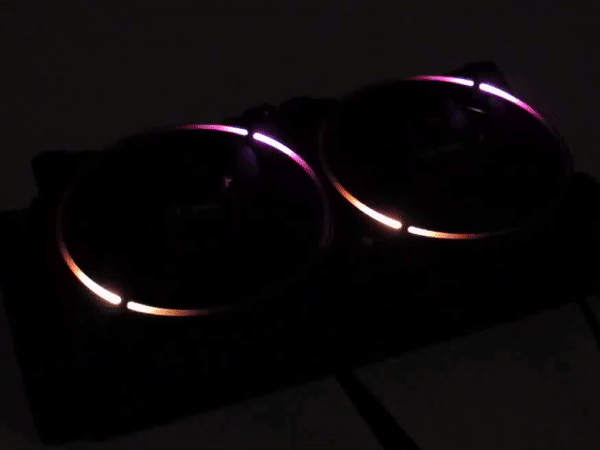

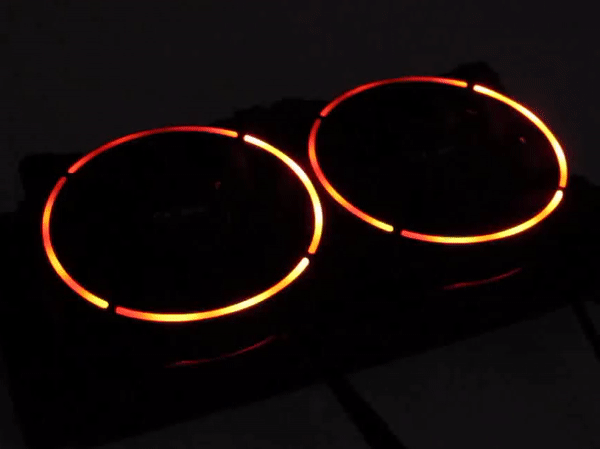

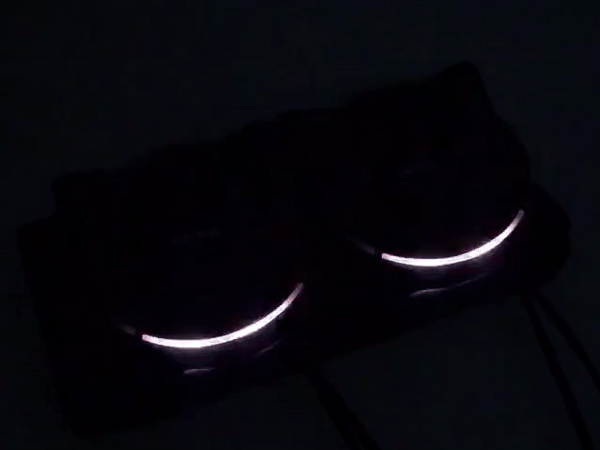

The fan features 12 individually addressable RGB LEDs that can be digitally controlled via your motherboard, for near unlimited lighting options. RGB Series fans are compatible with 5V ASUS Aura Addressable headers, 5V MSI JRainbow headers and 5V Gigabyte Digital Pin headers (adapter required). See compatibility list for more information.

RGB Series fans include anti-vibration pads, a hydraulic bearing and PWM speed control, enabling whisper quiet operation.


• Size: 120mm
• Depth: 25mm
• Speed: 800-2200RPM PWM (+/-10%)
• Noise Level: 18.6 - 31.4dbA
• Airflow: 68 CFM
• Static Air Pressure: 2.41 mmAq
• Operating Voltage Range: 8-13.4V
• Motor Power Draw: 0.31A
• Dual Sided Addressable RGB
• RGB Voltage: 5V
• RGB Power Draw: 0.29A
• Power Connector: 4 Pin PWM
• Tach RPM Output
• Hydraulic Bearing
• Anti-Vibration Pads
• 50cm Wire

Please Note: This fan is NOT compatible with 4pin 12V RGB (+GRB) headers or controllers (Including XSPC 12V RGB SATA Controller). Connecting the fan to 12V RGB will cause permanent damage. Only connect to 5V addressable RGB, making sure the 5V wire connects to the 5V header. Connecting the cable in reverse through a 4pin RGB extension cable will cause permanent damage.
